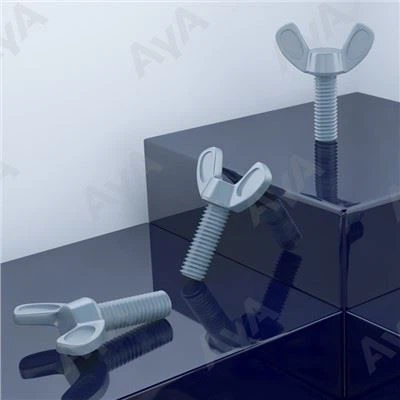

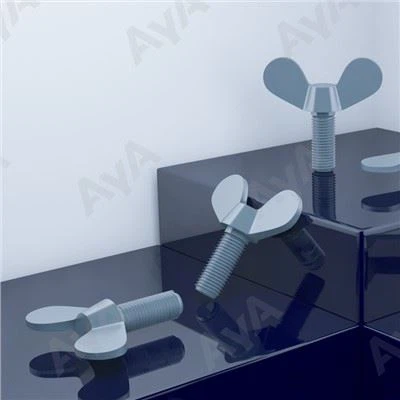

Bolt i gat Wing

Standet: ANSI/ASME B 18.17
Taip bilong Tred: Wokim Tred
Komoditi: Bolt i gat Wing
Nem tu: Bataflai Wing Bolts
Ol samting: Sil bilong Kabon
Diameter: 4# Heavy, 6# Light, 6# Heavy, 8# Light, 8# Heavy, 10# Light, 10# Heavy, 12# Light, 12# Heavy, 1/4 Light, 1/4 Regular, 1/4 Heavy, 5/16 Light, 5/16 Regular, 5/16 Heavy, 3/8 Light, 3/8 Oltaim, 3/8 Hevi, 7/16 Lait, 7/16 Hevi, 1/2 Lait, 1/2 Hevi, 5/8 Hevi
Pinisim: Plen, Blakpela Oksait, Zink Ol i bin Pletim, Hot Dip Galvanis, Oksaidesen, Dakromet, Fosfeting, Kedmium Elektroplet, Nikel Pletim
Fom blong Wing: Edged
Narapela Standet: ANSA/ASME B 18.17,JIS B 1184
MOQ: 1000kgs
Lidim Taim: 30 i go inap 60 de

Askim wok painimaut

Prodak Introdaksen

AYA Fasteners (Hebei) Co., Ltd. em i wanpela bilong ol kampani i gat bikpela save long wokim ol samting na ol saplaia bilong ol bolt i gat wing long en long Saina. Plis yu no ken pret long baim ol gutpela wing bolt ol i wokim long Saina hia long fektori bilong mipela. Blong konsaltesen blong praes, kontaktem mifala.

Winged Bolt-AYA

Olsem wanpela global saplaia bilong ol kastomais fastening solusen, sevis proses bilong AYA i klostu tu long ol kastoma olsem ol prodak bilong AYA. Stat long tok klia long ol nid bilong bihainim-ap sevis, AYA bai hariap na no ken hatwok long helpim ol kastoma long stretim ol hevi bilong pasim i kamap, long rausim wari bilong ol kastoma.

PRODAK DESKRIPSEN

Nem bilong Prodak	Bolt i gat Wing
Na Nem tu	Ol Bot bilong Wing bilong ol Bata.
Meteriel	Sil bilong Kabon
Stendet	ANSI/ASME B 18.17
Diamita	4# Heavy, 6# Light, 6# Heavy, 8# Light, 8# Heavy, 10# Light, 10# Heavy, 12# Light, 12# Heavy, 1/4 Light, 1/4 Regular, 1/4 Heavy, 5/16 Light, 5/16 Regular, 5/16 Heavy, 3/8 Light, 3/8 Oltaim, 3/8 Hevi, 7/16 Lait, 7/16 Hevi, 1/2 Lait, 1/2 Hevi, 5/8 Hevi
Pinis	Plain, Blak Oksaid, Zink Plet, Hot Dip Galvanis, Oksaidesen, Dakromet, Fosfeting, Kadmium Elektroplet, Nikel i bin Pletim
Tred Taip	UNC Tred
Fom bilong Wing	I bin go insait
Narapela Standet	ANSI/ASME B 18.17,JIS B 1184

OL DIMENSEN TABEL

Winged Bolt-2D

Sais bilong Tred d		4#	6#	6#	8#	8#	10#	10#	12#	12#	1/4	1/4	1/4
Sais bilong Tred d		Hevi	Lait	Hevi	Lait	Hevi	Lait	Hevi	Lait	Hevi	Lait	Olgeta taim	Hevi
d		0.1120	0.1380	0.1380	0.1640	0.1640	0.1900	0.1900	0.2160	0.2160	0.2500	0.2500	0.2500
PP		40	32	32	32	32	24 & 32	24 & 32	24	24	20	20	20
s	maks	0.72	0.72	0.91	0.91	1.10	0.91	1.10	1.10	1.25	1.10	1.25	1.44
s	minit	0.59	0.59	0.78	0.78	0.97	0.78	0.97	0.97	1.12	0.97	1.12	1.31
H	maks	0.41	0.41	0.47	0.47	0.57	0.47	0.57	0.57	0.66	0.57	0.66	0.79
H	minit	0.28	0.28	0.34	0.34	0.43	0.34	0.43	0.43	0.53	0.43	0.53	0.65
h	maks	0.11	0.11	0.14	0.14	0.18	0.14	0.18	0.18	0.21	0.18	0.21	0.24
h	minit	0.07	0.07	0.10	0.10	0.14	0.10	0.14	0.14	0.17	0.14	0.17	0.20
d_k	maks	0.33	0.33	0.43	0.43	0.50	0.43	0.50	0.50	0.58	0.50	0.58	0.70
d_k	minit	0.29	0.29	0.39	0.39	0.45	0.39	0.45	0.45	0.51	0.45	0.51	0.64
k	maks	0.14	0.14	0.18	0.18	0.22	0.18	0.22	0.22	0.25	0.22	0.25	0.30
k	minit	0.10	0.10	0.14	0.14	0.17	0.14	0.17	0.17	0.20	0.17	0.20	0.26
L	maks	0.75	0.75	0.75	0.75	0.75	1.00	1.00	1.00	1.00	1.50	1.50	1.50
L	minit	0.25	0.25	0.25	0.38	0.38	0.38	0.38	0.38	0.38	0.50	0.50	0.50

Sais bilong Tred d		5/16	5/16	5/16	3/8	3/8	3/8	7/16	7/16	1/2	1/2	5/8
Sais bilong Tred d		Lait	Olgeta taim	Hevi	Lait	Olgeta taim	Hevi	Lait	Hevi	Lait	Hevi	Hevi
d		0.3125	0.3125	0.3125	0.3750	0.3750	0.3750	0.4375	0.4375	0.5000	0.5000	0.6250
PP		18	18	18	16	16	16	14	14	13	13	11
s	maks	1.25	1.44	1.94	1.44	1.94	2.76	1.94	2.76	1.94	2.76	2.76
s	minit	1.12	1.31	1.81	1.31	1.81	2.62	1.81	2.62	1.81	2.62	2.62
H	maks	0.66	0.79	1.00	0.79	1.00	1.44	1.00	1.44	1.00	1.44	1.44
H	minit	0.53	0.65	0.87	0.65	0.87	1.31	0.87	1.31	0.87	1.31	1.31
h	maks	0.21	0.24	0.33	0.24	0.33	0.40	0.33	0.40	0.33	0.40	0.40
h	minit	0.17	0.20	0.26	0.20	0.26	0.34	0.26	0.34	0.26	0.34	0.34
d_k	maks	0.58	0.70	0.93	0.70	0.93	1.19	0.93	1.19	0.93	1.19	1.19
d_k	minit	0.51	0.64	0.86	0.64	0.86	1.13	0.86	1.13	0.86	1.13	1.13
k	maks	0.25	0.30	0.39	0.30	0.39	0.55	0.39	0.55	0.39	0.55	0.55
k	minit	0.20	0.26	0.35	0.26	0.35	0.51	0.35	0.51	0.35	0.51	0.51
L	maks	1.50	1.50	1.50	2.00	2.00	2.00	4.00	4.00	4.00	4.00	4.00
L	minit	0.50	0.50	0.50	0.75	0.75	0.75	1.00	1.00	1.00	1.00	1.25

OL DITEIL BILONG PRODAK

Winged Bolt-detail

PRODAK ADVANTAG.

Winged Bolt-advantages

ADVANTAG BILONGBolt i gat Wing

1. Em i ken yusim o rausim long han tasol na i no gat nid long putim ol draiva.

2. Bikpela tok i no nidim oltaim long taitim ap wantaim dispela skru.

3. Ol i wokim long hai-}standard raw materiel we i bringim wanpela longpela sevis laip na low-cost mentenens long bihain taim.

4. I no nidim eni moa hat tritmen wetem situesen blong hem we i stap antap naoia.

5. AYA i gat wanpela gutpela dijitel sistem bilong bihainim ol prodak bilong lukim olsem ol i ken lukim ol gutpela samting bilong hai-'kwaliti.

6. AYA i wokim ol bolt i gat wing strik long sait bilong ISO9001 o narapela intanesenel standet ol kastoma i laikim long lukim olsem fainel prodak i gat kwaliti.
