Stinles Stil Siling Washer
Standet: DIN 988 (P)
Komoditi: Washer bilong Stelles Sil Silim
Ol samting: Stilles Stil
Diamita: 3,4,5,6,7,8,9,10,11,12,13,14,15,16,17,18,19,20,22,25,26,28,30,32,35,36,37,40,42, 45,48,50,52,55,56,60,63,65,70,75,80,85,90,95,100,105,110,120,130,140,150,160,170
Pinisim: Plenim, Pasim, Kastomaisesen
Fom: P
Sndet bilong narapela samting: DIN 988 (S)
MOQ: 1000kgs
Lidim Taim: 30 i go inap 60 de
Prodak Introdaksen
AYA Fasteners (Hebei) Co., Ltd. em i wanpela bilong ol kampani i gat save long wokim ol samting na ol saplaia bilong steinles stiel siling washer long Saina. Plis yu no ken pret long baim hai kwaliti steinles stiel siling washer ol i wokim long Saina hia long fektori bilong mipela. Blong konsaltesen blong praes, kontaktem mifala.
Olsem wanpela global saplaia bilong ol kastomais fastening solusen, sevis proses bilong AYA i klostu tu long ol kastoma olsem ol prodak bilong AYA. Stat long tok klia long ol nid bilong bihainim-ap sevis, AYA bai hariap na no ken hatwok long helpim ol kastoma long stretim ol hevi bilong pasim i kamap, long rausim wari bilong ol kastoma.
PRODAK DESKRIPSEN
| Nem bilong Prodak | Stinles Stil Siling Washer |
| Meteriel | Stinles Stil |
| Stendet | DIN 988 (P) |
Diamita | 3,4,5,6,7,8,9,10,11,12,13,14,15,16,17,18,19,20,22,25,26,28,30,32,35,36,37,40,42,45,48,50,52,55,56,60,63,65,70,75,80,85,90,95,100,105,110,120,130,140,150,160,170 |
| Pinis | Plain, Pasivim, Kastomaisesen |
| Taip | P |
| Narapela Standet | DIN 988 (S) |

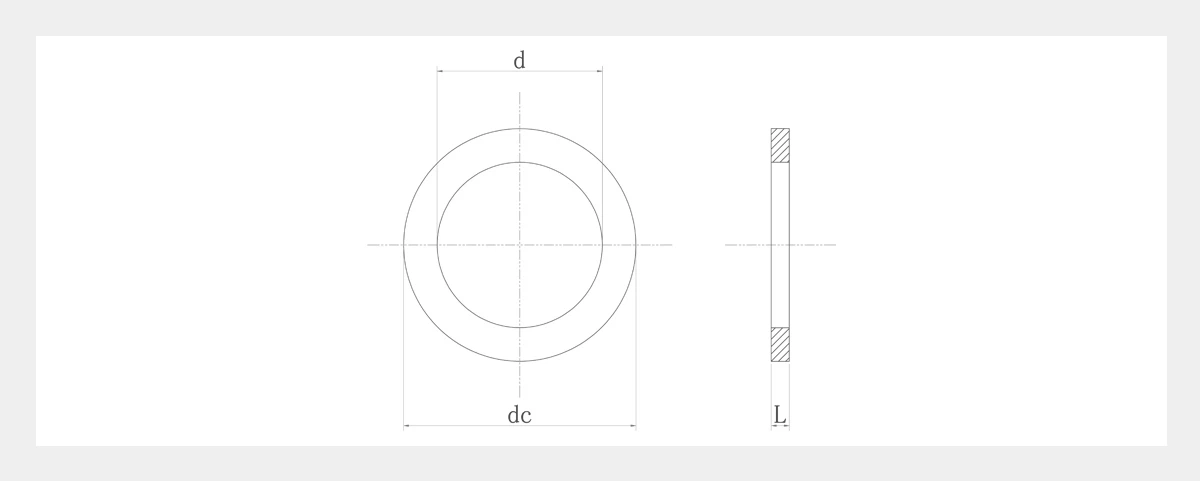

OL DIMENSEN TABEL
| Nominal Daiamita d | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | 11 | 12 | 13 | 14 | 15 | 16 | 17 | |
| d | Nominal Sais (D12) | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | 11 | 12 | 13 | 14 | 15 | 16 | 17 |
| minit | 3.02 | 4.03 | 5.03 | 6.03 | 7.04 | 8.04 | 9.04 | 10.04 | 11.05 | 12.05 | 13.05 | 14.05 | 15.05 | 16.05 | 17.05 | |
| maks | 3.12 | 4.15 | 5.15 | 6.15 | 7.19 | 8.19 | 9.19 | 10.19 | 11.23 | 12.23 | 13.23 | 14.23 | 15.23 | 16.23 | 17.23 | |
| dc | Nominal Sais (d12) | 6 | 8 | 10 | 12 | 13 | 14 | 15 | 16 | 17 | 18 | 19 | 20 | 21 | 22 | 24 |
| minit | 5.85 | 7.81 | 9.81 | 11.77 | 12.77 | 13.77 | 14.77 | 15.77 | 16.77 | 17.77 | 18.725 | 19.725 | 20.725 | 21.725 | 23.725 | |
| maks | 5.97 | 7.96 | 9.96 | 11.95 | 12.95 | 13.95 | 14.95 | 15.95 | 16.95 | 17.95 | 18.935 | 19.935 | 20.935 | 21.935 | 23.935 | |
| Nominal Daiamita d | 18 | 19 | 20 | 22 | 22 | 25 | 25 | 26 | 28 | 30 | 32 | 35 | 36 | 37 | 40 | |
| 30 | 32 | 35 | 36 | |||||||||||||
| d | Nominal Sais (D12) | 18 | 19 | 20 | 22 | 22 | 25 | 25 | 26 | 28 | 30 | 32 | 35 | 36 | 37 | 40 |
| minit | 18.05 | 19.065 | 20.065 | 22.065 | 22.065 | 25.065 | 25.065 | 26.065 | 28.065 | 30.065 | 32.08 | 35.08 | 36.08 | 37.08 | 40.08 | |
| maks | 18.23 | 19.275 | 20.275 | 22.275 | 22.275 | 25.275 | 25.275 | 26.275 | 28.275 | 30.275 | 32.33 | 35.33 | 36.33 | 37.33 | 40.33 | |
| dc | Nominal Sais (d12) | 25 | 26 | 28 | 30 | 32 | 35 | 36 | 37 | 40 | 42 | 45 | 45 | 45 | 47 | 50 |
| minit | 24.725 | 25.725 | 27.725 | 29.725 | 31.67 | 34.67 | 35.67 | 36.67 | 39.67 | 41.67 | 44.67 | 44.67 | 44.67 | 46.67 | 49.67 | |
| maks | 24.935 | 25.935 | 27.935 | 29.935 | 31.92 | 34.92 | 35.92 | 36.92 | 39.92 | 41.92 | 44.92 | 44.92 | 44.92 | 46.92 | 49.92 | |
| Nominal Daiamita d | 42 | 45 | 45 | 48 | 50 | 50 | 52 | 55 | 56 | 56 | 60 | 63 | 65 | 70 | 75 | |
| 55 | 56 | 62 | 63 | 70 | 72 | |||||||||||
| d | Nominal Sais (D12) | 42 | 45 | 45 | 48 | 50 | 50 | 52 | 55 | 56 | 56 | 60 | 63 | 65 | 70 | 75 |
| minit | 42.08 | 45.08 | 45.08 | 48.08 | 50.08 | 50.08 | 52.1 | 55.1 | 56.1 | 56.1 | 60.1 | 63.1 | 65.1 | 70.1 | 75.1 | |
| maks | 42.33 | 45.33 | 45.33 | 48.33 | 50.33 | 50.33 | 52.4 | 55.4 | 56.4 | 56.4 | 60.4 | 63.4 | 65.4 | 70.4 | 75.4 | |
| dc | Nominal Sais (d12) | 52 | 55 | 56 | 60 | 62 | 63 | 65 | 68 | 70 | 72 | 75 | 80 | 85 | 90 | 95 |
| minit | 51.6 | 54.6 | 55.6 | 59.6 | 61.6 | 62.6 | 64.6 | 67.6 | 69.6 | 71.6 | 74.6 | 79.6 | 84.53 | 89.53 | 94.53 | |
| maks | 51.9 | 54.9 | 55.9 | 59.9 | 61.9 | 62.9 | 64.9 | 67.9 | 69.9 | 71.9 | 74.9 | 79.9 | 84.88 | 89.88 | 94.88 | |
| Nominal Daiamita d | 80 | 85 | 90 | 95 | 100 | 100 | 105 | 110 | 120 | 130 | 140 | 150 | 160 | 170 | |
| 120 | 125 | ||||||||||||||
| d | Nominal Sais (D12) | 80 | 85 | 90 | 95 | 100 | 100 | 105 | 110 | 120 | 130 | 140 | 150 | 160 | 170 |
| minit | 80.1 | 85.12 | 90.12 | 95.12 | 100.12 | 100.12 | 105.12 | 110.12 | 120.12 | 130.145 | 140.145 | 150.145 | 160.145 | 170.145 | |
| maks | 80.4 | 85.47 | 90.47 | 95.47 | 100.47 | 100.47 | 105.47 | 110.47 | 120.47 | 130.545 | 140.545 | 150.545 | 160.545 | 170.545 | |
| dc | Nominal Sais (d12) | 100 | 105 | 110 | 115 | 120 | 125 | 130 | 140 | 150 | 160 | 170 | 180 | 190 | 200 |
| minit | 99.53 | 104.53 | 109.53 | 114.53 | 119.53 | 124.455 | 129.455 | 139.455 | 149.455 | 159.455 | 169.455 | 179.455 | 189.37 | 199.37 | |
| maks | 99.88 | 104.88 | 109.88 | 114.88 | 119.88 | 124.855 | 129.855 | 139.855 | 149.855 | 159.855 | 169.855 | 179.855 | 189.83 | 199.83 | |
| Ol samting: Sim: Minimum kwaliti Sen 2 K50 bihainim DIN 1624 | |||||||||||||||
OL DITEIL BILONG PRODAK
PRODAK ADVANTAG.
ADVANTAG BILONGStinles Stil Siling Washer
1. Hae-}ol steinles stiel metal siling washer we i gat wan hol long senta i usually gat tu kaen, self-}}} blong ol wasem ol lok wasa mo self-} blong ol wasem, we i stap long ol difren stael mo saes.
2. Tupela kain waswas ol i yusim long ol siling solusen.
3. Ol i save yusim dispela kain masin bilong wasim klos wantaim ol skru na bolt bilong pasim wara, oil, das, na ol narapela samting i gat doti.
4. Ol steinles stiel materiel i no stap long bagarap bilong ausait na i givim korosen resistens, veliu, na strong.
5. AYA i gat ful komited mo i devoted blong provaedem ol fastening solusen raon long wol.
6. Nau yet, Kampani i save sevim moa long 1000 kastoma long olgeta hap bilong wol. Tras bilong ol kastoma i soim olsem ol prodak bilong ol i ken stap longpela taim na i stret.
KWALITI INSPEKSEN
PAKEJIM & KONTENEM LODIM
KENSEJARIOS
BILONG WANEM SAMTING I SAVE?
Hot Tag: steinles stiel siling washer, Saina, ol saplaia, ol kampani, ol fektori, baim, prais, bilong salim, bilong salim long Saina
No gat Infomesen
