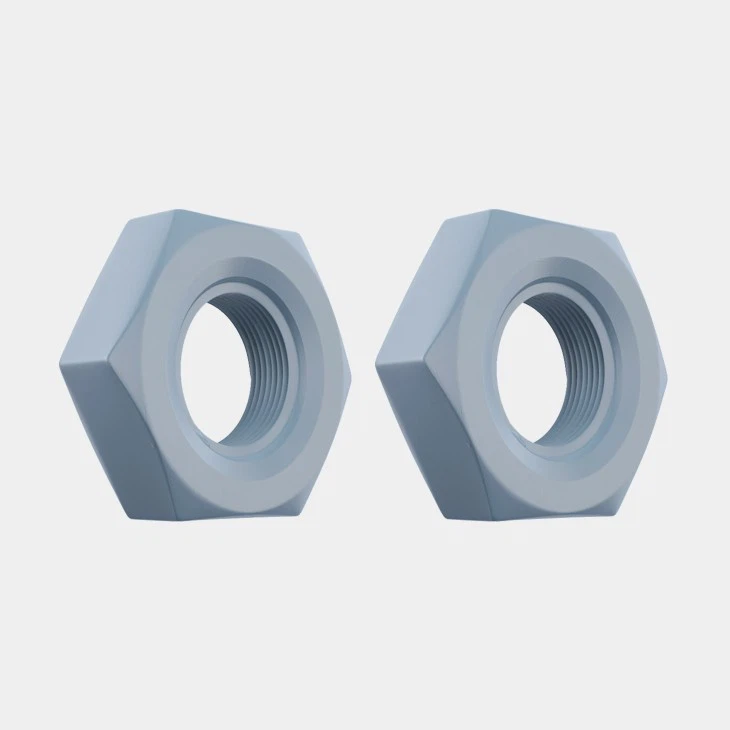

Ol Hex Nat .
Standet: ISO 8675
Taip bilong Tred: UNF Tred
Komoditi: Ol Heks Nat i liklik
Na tu: Hexagon Tin Nat
Ol samting: Sil bilong Kabon
Klasti Klas: 04, 05
Diamita: M8, M10, (M10), M12, (M12), (M14), (M14), M16, (M18), M20, (M20), (M22), M24, (M27), M30, (M33), M36, (M39), M42, (M45), M42, (M45), M42, (M45), M42, (M45), M42, (M45), M42, (M45), M42, (M45), M42, (M45), M42, (M45), M42, (M45), M42, (M45), M42, (M45), M42, (M45), M42, (M45), M42, (M45)
Finish: Plain / Black Oxide / Zinc Plated / Thick-Film Passivated(ZSML) / Zinc Flake, Silver(ZFSHL) / Hot Dipped Galvanized / Organic / Geomet / Dacromet/ Phosphating / Cadmium Electroplate / Nickel Plated
Draivim: Hex bilong Ekstenel
Narapela Standet: DIN 439-2, DIN 936, ISO 4166, ISO 4035, ANSI/ASME B 18.2.4.5M
MOQ: 1000kgs
Lidim Taim: 30 i go inap 60 de
Prodak Introdaksen
AYA Fasteners (Hebei) Co., Ltd. em i wanpela bilong ol kampani i gat bikpela save long wokim ol samting na ol saplaia bilong ol liklik heks nat long Saina. Plis yu no ken pret long baim ol hai kwaliti tin heks nat ol i wokim long Saina hia long fektori bilong mipela. Blong konsaltesen blong praes, kontaktem mifala.
Olsem wanpela global saplaia bilong ol kastomais fastening solusen, sevis proses bilong AYA i klostu tu long ol kastoma olsem ol prodak bilong AYA. Stat long tok klia long ol nid bilong bihainim-ap sevis, AYA bai hariap na no ken hatwok long helpim ol kastoma long stretim ol hevi bilong pasim i kamap, long rausim wari bilong ol kastoma.
PRODAK DESKRIPSEN
| Nem bilong Prodak | Ol Hex Nat . |
| Na Nem tu | Hexagon Tin Nat |
| Meteriel | Sil bilong Kabon |
| Stendet | ISO 8675 |
| Klasti Klas | 04, 05 |
| Diamita | M8, M10, (M10), M12, (M12), (M14), M16, (M18), M20, (M20), (M22), M24, (M27), M30, (M33), M36, (M39), M42, (M45), M48, (M52), M56, (M60), M64 |
| Pinis | Plain / Blak Oksaid / Zinc Plateed / Tik-Piksa |
| Draivim | Hex bilong Ekstenel |
| Tred Taip | UNF Tred |
| Narapela Standet | DIN 439-2, DIN 936, ISO 4166, ISO 4035, ANSI/ASME B 18.2.4.5M |

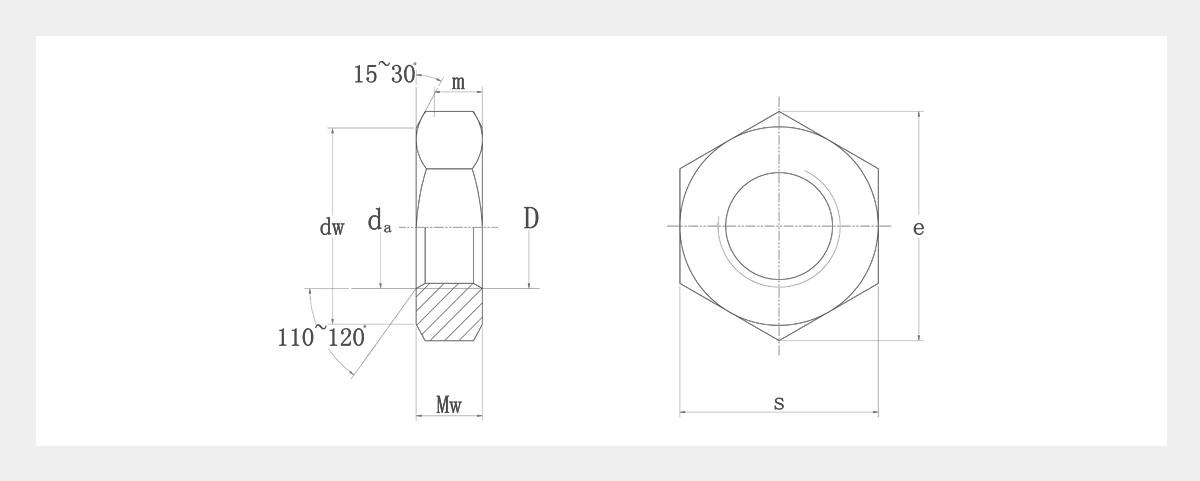

OL DIMENSEN TABEL
| Skru Tred d | M8 | M10 | (M10) | M12 | (M12) | (M14) | M16 | (M18) | M20 | (M20) | (M22) | M24 | |
| P | Pits | 1 | 1 | 1.25 | 1.5 | 1.25 | 1.5 | 1.5 | 1.5 | 1.5 | 2 | 1.5 | 2 |
| da | maks | 8.75 | 10.8 | 10.8 | 13 | 13 | 15.1 | 17.3 | 19.5 | 21.6 | 21.6 | 23.7 | 25.9 |
| minit | 8 | 10 | 10 | 12 | 12 | 14 | 16 | 18 | 20 | 20 | 22 | 24 | |
| dw | minit | 11.63 | 14.63 | 14.63 | 16.63 | 16.63 | 19.64 | 22.49 | 24.85 | 27.7 | 27.7 | 31.35 | 33.25 |
| e | minit | 14.38 | 17.77 | 17.77 | 20.03 | 20.03 | 23.36 | 26.75 | 29.56 | 32.95 | 32.95 | 37.29 | 39.55 |
| m | maks | 4 | 5 | 5 | 6 | 6 | 7 | 8 | 9 | 10 | 10 | 11 | 12 |
| minit | 3.7 | 4.7 | 4.7 | 5.7 | 5.7 | 6.42 | 7.42 | 8.42 | 9.1 | 9.1 | 9.9 | 10.9 | |
| mw | minit | 2.96 | 3.76 | 3.76 | 4.56 | 4.56 | 5.14 | 5.94 | 6.74 | 7.28 | 7.28 | 7.92 | 8.72 |
| s | mak bilong | 13 | 16 | 16 | 18 | 18 | 21 | 24 | 27 | 30 | 30 | 34 | 36 |
| minit | 12.73 | 15.73 | 15.73 | 17.73 | 17.73 | 20.67 | 23.67 | 26.16 | 29.16 | 29.16 | 33 | 35 | |
| Skru Tred d | (M27) | M30 | (M33) | M36 | (M39) | M42 | (M45) | M48 | (M52) | M56 | (M60) | M64 | |
| P | Pits | 2 | 2 | 2 | 3 | 3 | 3 | 3 | 3 | 4 | 4 | 4 | 4 |
| da | maks | 29.1 | 32.4 | 35.6 | 38.9 | 42.1 | 45.4 | 48.6 | 51.8 | 56.2 | 60.5 | 64.8 | 69.1 |
| minit | 27 | 30 | 33 | 36 | 39 | 42 | 45 | 48 | 52 | 56 | 60 | 64 | |
| dw | minit | 38 | 42.75 | 46.55 | 51.11 | 55.86 | 59.95 | 64.7 | 69.45 | 74.2 | 78.66 | 83.41 | 88.16 |
| e | minit | 45.2 | 50.85 | 55.37 | 60.79 | 66.44 | 71.3 | 76.95 | 82.6 | 88.25 | 93.56 | 99.21 | 104.86 |
| m | maks | 13.5 | 15 | 16.5 | 18 | 19.5 | 21 | 22.5 | 24 | 26 | 28 | 30 | 32 |
| minit | 12.4 | 13.9 | 15.4 | 16.9 | 18.2 | 19.7 | 21.2 | 22.7 | 24.7 | 26.7 | 28.7 | 30.4 | |
| mw | minit | 9.92 | 11.12 | 12.32 | 13.52 | 14.56 | 15.76 | 16.96 | 18.16 | 19.76 | 21.36 | 22.96 | 24.32 |
| s | mak bilong | 41 | 46 | 50 | 55 | 60 | 65 | 70 | 75 | 80 | 85 | 90 | 95 |
| minit | 40 | 45 | 49 | 53.8 | 58.8 | 63.1 | 68.1 | 73.1 | 78.1 | 82.8 | 87.8 | 92.8 | |

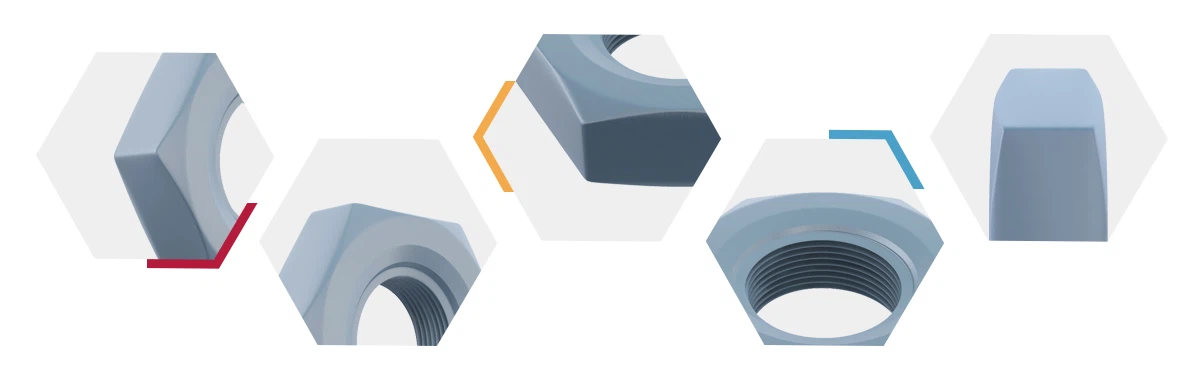

OL DITEIL BILONG PRODAK
PRODAK ADVANTAG.
ADVANTAG BILONG Hitpela Hex Nats
1. Ol i save yusim ol liklik nat long 'hexagonal' long ol taim bilong putim we planti taim ol i save brukim.
2. Ol Hexagonal tin nat i gat liklik tiknes na ol i save yusim planti taim long ol situesen bilong instolesen we spes bilong pes bilong ol hap i pas wantaim i liklik.
3. Hexagonal tin nat tu i gat wok bilong anti-} lus. Planti taim ol i save yusim ol olsem ol seken nat long ol samting i no stret wantaim-}}}}}li, we inap mekim wok bilong lokim.
4. Ol i save yusim ol liklik nat olsem strongim taim ol i yusim tupela taim na ol i wokim bilong pasim dispela nat long lus.
5. AYA FASTENERS gutpela prodak kwaliti na bihain-sels sevis i helpim mipela long winim tras bilong ol kastoma bilong mipela long wol.
6. Eni ples, eni taem, taem yu gat eni problem mo diman we i rileit wetem ol Fasteners, plis filim fri blong kontaktem AYA kastoma sevis blong mifala.
